How To Make Wi-Fi Car With NodeMCU| NodeMCU Projects| Topped With Fun

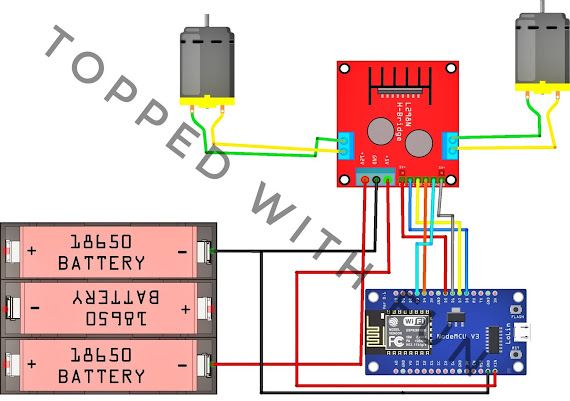

Circuit Diagram:


 Code:


#define ENA   14           // Enable/speed motors Right        GPIO14(D5)

#define ENB   12            // Enable/speed motors Left         GPIO12(D6)

#define IN_1  15            // L298N in1 motors Right           GPIO15(D8)

#define IN_2  13            // L298N in2 motors Right           GPIO13(D7)

#define IN_3  2             // L298N in3 motors Left            GPIO2(D4)

#define IN_4  0             // L298N in4 motors Left            GPIO0(D3)


#include <ESP8266WiFi.h>

#include <WiFiClient.h>

#include <ESP8266WebServer.h>


String command;              //String to store app command state.

int speedCar = 80;              // 400 - 1023.

int speed_Coeff = 3;


const char* ssid = "XXXXXXXXXXX";       //SSID Name

ESP8266WebServer server(80);


void setup() {



 pinMode(ENA, OUTPUT);

 pinMode(ENB, OUTPUT);

 pinMode(IN_1, OUTPUT);

 pinMode(IN_2, OUTPUT);

 pinMode(IN_3, OUTPUT);

 pinMode(IN_4, OUTPUT);



  Serial.begin(115200);



// Connecting WiFi


  WiFi.mode(WIFI_AP);

  WiFi.softAP(ssid);


  IPAddress myIP = WiFi.softAPIP();

  Serial.print("AP IP address: ");

  Serial.println(myIP);



 // Starting WEB-server

     server.on ( "/", HTTP_handleRoot );

     server.onNotFound ( HTTP_handleRoot );

     server.begin();

}


void goAhead(){


      digitalWrite(IN_1, LOW);

      digitalWrite(IN_2, HIGH);

      analogWrite(ENA, speedCar);


      digitalWrite(IN_3, LOW);

      digitalWrite(IN_4, HIGH);

      analogWrite(ENB, speedCar);

  }


void goBack(){


      digitalWrite(IN_1, HIGH);

      digitalWrite(IN_2, LOW);

      analogWrite(ENA, speedCar);


      digitalWrite(IN_3, HIGH);

      digitalWrite(IN_4, LOW);

      analogWrite(ENB, speedCar);

  }


void goRight(){


      digitalWrite(IN_1, HIGH);

      digitalWrite(IN_2, LOW);

      analogWrite(ENA, speedCar);


      digitalWrite(IN_3, LOW);

      digitalWrite(IN_4, HIGH);

      analogWrite(ENB, speedCar);

  }


void goLeft(){


      digitalWrite(IN_1, LOW);

      digitalWrite(IN_2, HIGH);

      analogWrite(ENA, speedCar);


      digitalWrite(IN_3, HIGH);

      digitalWrite(IN_4, LOW);

      analogWrite(ENB, speedCar);

  }


void goAheadRight(){



      digitalWrite(IN_1, LOW);

      digitalWrite(IN_2, HIGH);

      analogWrite(ENA, speedCar/speed_Coeff);



      digitalWrite(IN_3, LOW);

      digitalWrite(IN_4, HIGH);

      analogWrite(ENB, speedCar);

   }


void goAheadLeft(){



      digitalWrite(IN_1, LOW);

      digitalWrite(IN_2, HIGH);

      analogWrite(ENA, speedCar);


      digitalWrite(IN_3, LOW);

      digitalWrite(IN_4, HIGH);

      analogWrite(ENB, speedCar/speed_Coeff);

  }


void goBackRight(){


      digitalWrite(IN_1, HIGH);

      digitalWrite(IN_2, LOW);

      analogWrite(ENA, speedCar/speed_Coeff);


      digitalWrite(IN_3, HIGH);

      digitalWrite(IN_4, LOW);

      analogWrite(ENB, speedCar);

  }


void goBackLeft(){


      digitalWrite(IN_1, HIGH);

      digitalWrite(IN_2, LOW);

      analogWrite(ENA, speedCar);


      digitalWrite(IN_3, HIGH);

      digitalWrite(IN_4, LOW);

      analogWrite(ENB, speedCar/speed_Coeff);

  }


void stopRobot(){


      digitalWrite(IN_1, LOW);

      digitalWrite(IN_2, LOW);

      analogWrite(ENA, speedCar);


      digitalWrite(IN_3, LOW);

      digitalWrite(IN_4, LOW);

      analogWrite(ENB, speedCar);

 }


void loop() {

    server.handleClient();



      command = server.arg("State");

      if (command == "F") goAhead();

      else if (command == "B") goBack();

      else if (command == "L") goLeft();

      else if (command == "R") goRight();

      else if (command == "I") goAheadRight();

      else if (command == "G") goAheadLeft();

      else if (command == "J") goBackRight();

      else if (command == "H") goBackLeft();

      else if (command == "0") speedCar = 400;

      else if (command == "1") speedCar = 470;

      else if (command == "2") speedCar = 540;

      else if (command == "3") speedCar = 610;

      else if (command == "4") speedCar = 680;

      else if (command == "5") speedCar = 750;

      else if (command == "6") speedCar = 820;

      else if (command == "7") speedCar = 890;

      else if (command == "8") speedCar = 960;

      else if (command == "9") speedCar = 1023;

      else if (command == "S") stopRobot();

}


void HTTP_handleRoot(void) {


if( server.hasArg("State") ){

       Serial.println(server.arg("State"));

  }

  server.send ( 200, "text/html", "" );

  delay(1);

}
