Obstacle Avoiding Car With L298N Motor Driver(With Code And Circuit)|Autonomous Car|Topped With Fun

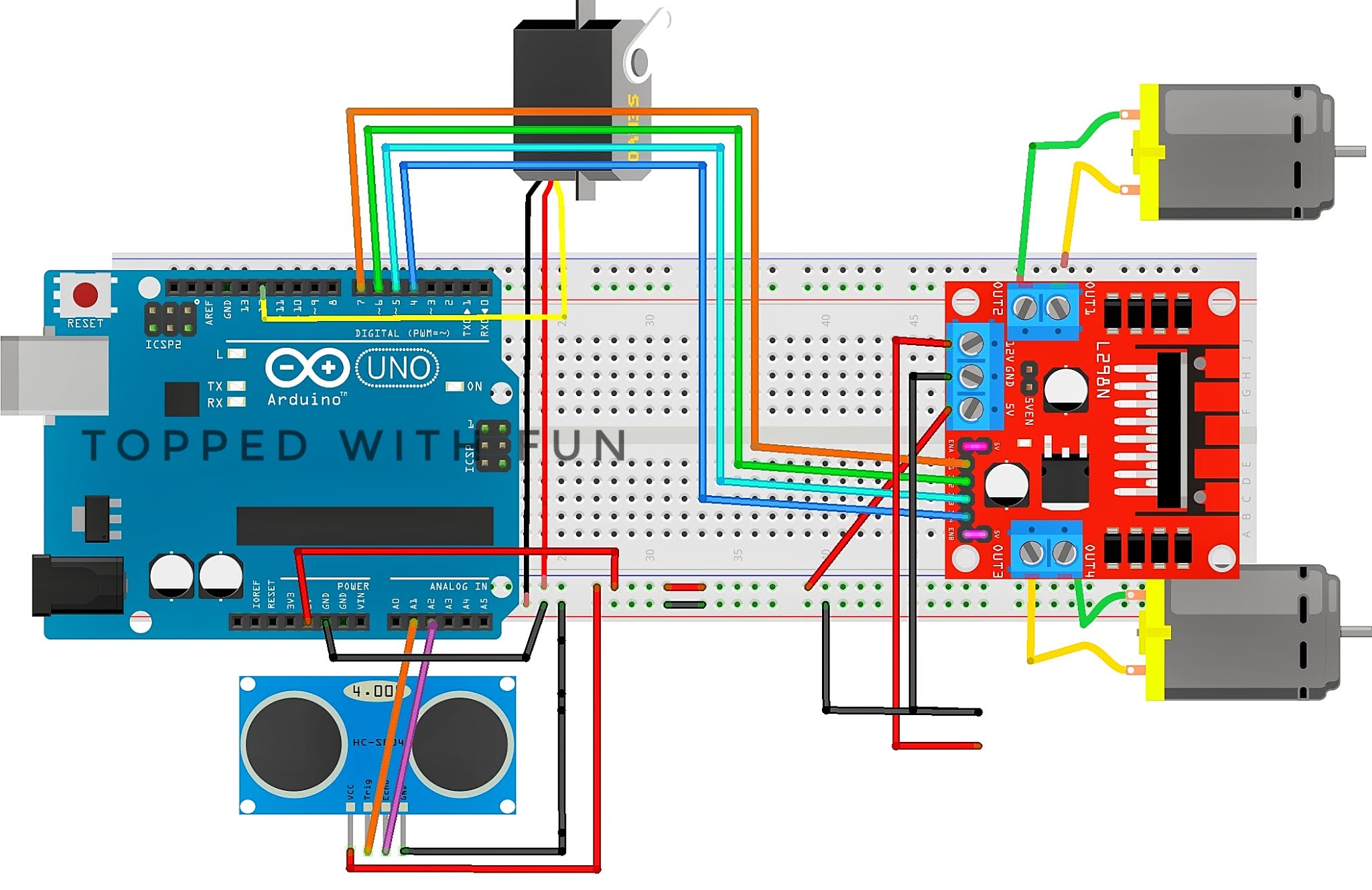

Circuit Diagram:-

Code:-

//Topped With Fun

#include <Servo.h>              //Library To Include Servo motor

#include <NewPing.h>        //Library To Include Ultrasonic Sensor Do  Install This Library

//To Control L298N Driver Pins

const int LeftMotorForward = 7;

const int LeftMotorBackward = 6;

const int RightMotorForward = 4;

const int RightMotorBackward = 5;

//sensor pins

#define trig_pin A1    //Analog Input 1

#define echo_pin A2  //Analog Input 2

#define maximum_distance 200

boolean goesForward = false;

int distance = 100;

NewPing sonar(trig_pin, echo_pin, maximum_distance); //sensor function

Servo servo_motor;   //Defining Name For Servo Motor

void setup(){

  pinMode(RightMotorForward, OUTPUT);

  pinMode(LeftMotorForward, OUTPUT);

  pinMode(LeftMotorBackward, OUTPUT);

  pinMode(RightMotorBackward, OUTPUT);



  servo_motor.attach(12);   //Servo Connected pin

  servo_motor.write(115);

  delay(2000);

  distance = readPing();

  delay(100);

  distance = readPing();

  delay(100);

  distance = readPing();

  delay(100);

  distance = readPing();

  delay(100);

}

void loop(){

  int distanceRight = 0;

  int distanceLeft = 0;

  delay(50);

  if (distance <= 25)    //Distance At Which It Stops

{

    moveStop();

    delay(300);

    moveBackward();

    delay(400);

    moveStop();

    delay(300);

    distanceRight = lookRight();

    delay(300);

    distanceLeft = lookLeft();

    delay(300);

    if (distance >= distanceLeft){

      turnRight();

      moveStop();

    }

    else{

      turnLeft();

      moveStop();

    }

  }

  else{

    moveForward();

  }

    distance = readPing();

}

int lookRight(){

  servo_motor.write(50);

  delay(500);

  int distance = readPing();

  delay(100);

  servo_motor.write(115);

  return distance;

}

int lookLeft(){

  servo_motor.write(170);

  delay(500);

  int distance = readPing();

  delay(100);

  servo_motor.write(115);

  return distance;

  delay(100);

}

int readPing(){

  delay(70);

  int cm = sonar.ping_cm();

  if (cm==0){

    cm=250;

  }

  return cm;

}

void moveStop(){



  digitalWrite(RightMotorForward, LOW);

  digitalWrite(LeftMotorForward, LOW);

  digitalWrite(RightMotorBackward, LOW);

  digitalWrite(LeftMotorBackward, LOW);

}

void moveForward(){

  if(!goesForward){

    goesForward=true;



    digitalWrite(LeftMotorForward, HIGH);

    digitalWrite(RightMotorForward, HIGH);



    digitalWrite(LeftMotorBackward, LOW);

    digitalWrite(RightMotorBackward, LOW);

  }

}

void moveBackward(){

  goesForward=false;

  digitalWrite(LeftMotorBackward, HIGH);

  digitalWrite(RightMotorBackward, HIGH);



  digitalWrite(LeftMotorForward, LOW);

  digitalWrite(RightMotorForward, LOW);



}

void turnRight(){

  digitalWrite(LeftMotorForward, HIGH);

  digitalWrite(RightMotorBackward, HIGH);



  digitalWrite(LeftMotorBackward, LOW);

  digitalWrite(RightMotorForward, LOW);



  delay(500);



  digitalWrite(LeftMotorForward, HIGH);

  digitalWrite(RightMotorForward, HIGH);



  digitalWrite(LeftMotorBackward, LOW);

  digitalWrite(RightMotorBackward, LOW);







}

void turnLeft(){

  digitalWrite(LeftMotorBackward, HIGH);

  digitalWrite(RightMotorForward, HIGH);



  digitalWrite(LeftMotorForward, LOW);

  digitalWrite(RightMotorBackward, LOW);

  delay(500);



  digitalWrite(LeftMotorForward, HIGH);

  digitalWrite(RightMotorForward, HIGH);



  digitalWrite(LeftMotorBackward, LOW);

  digitalWrite(RightMotorBackward, LOW);

}
